Because signs alone are not enough...
Over 1,000,000 units in use worldwide in more than 20,000 locations

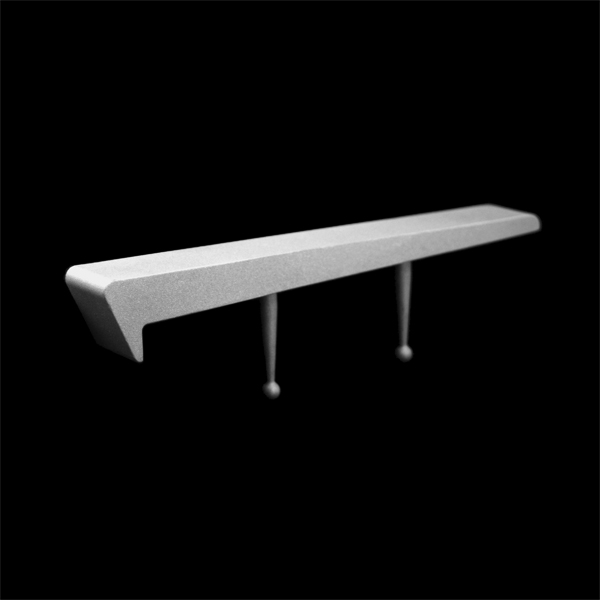

G012SS
(for square corner)

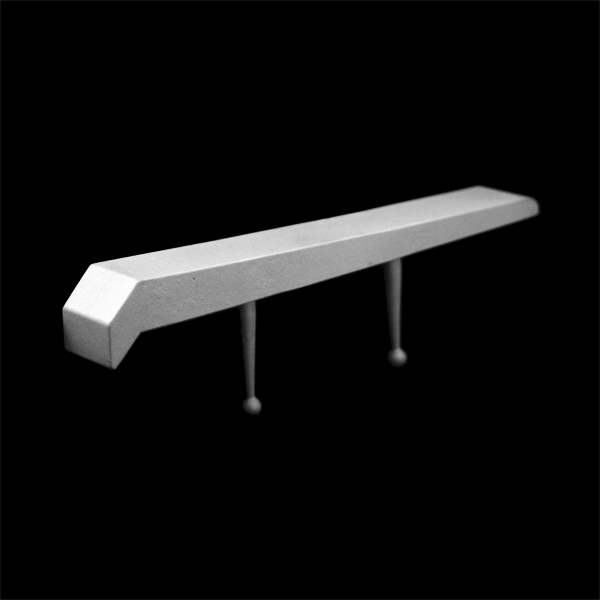

G135SS
(for chamfer)
"G" Series Surface Mount
Stainless Steel


Choosing a Part
Click the "Submittal" button below each part number to view the profiles of the "G" Series parts.  You can print and cut out these full scale parts and check them for the best fitting bracket to your particular application. NOTE: IN ORDER FOR DRAWINGS TO PRINT TO SCALE, MAKE SURE "PAGE SCALING" IN YOUR PRINTER OPTIONS IS SET TO "NONE".

For photos of the parts, mounting hardware options, and colors, click on the "Details" button.


Material Choice
"G" Series parts are available in 316 Stainless Steel with Brushed Finish.  Refer to "Details" sheets for finish options.

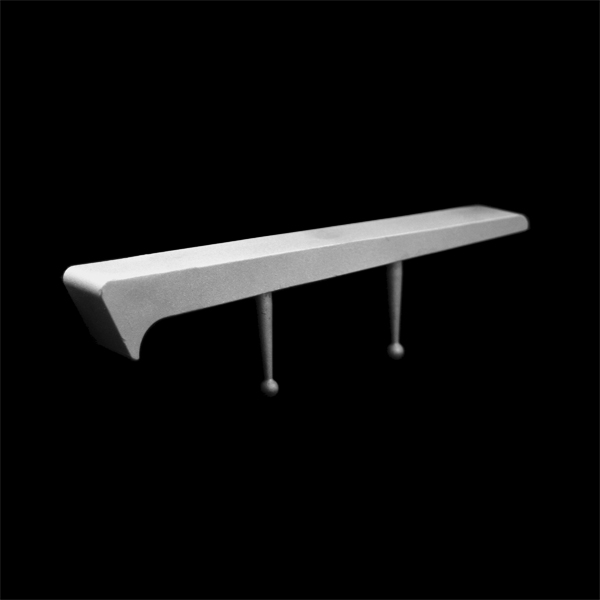

GR05SS
(for 1/2" radius)
GR10SS
(for 1" radius)


G-Mini Series (For 6'' - 8'' curbing)
GMR05SS
GM012SS
GM135SS
Note: All stainless parts have a minimum order of 6 pieces
